Description

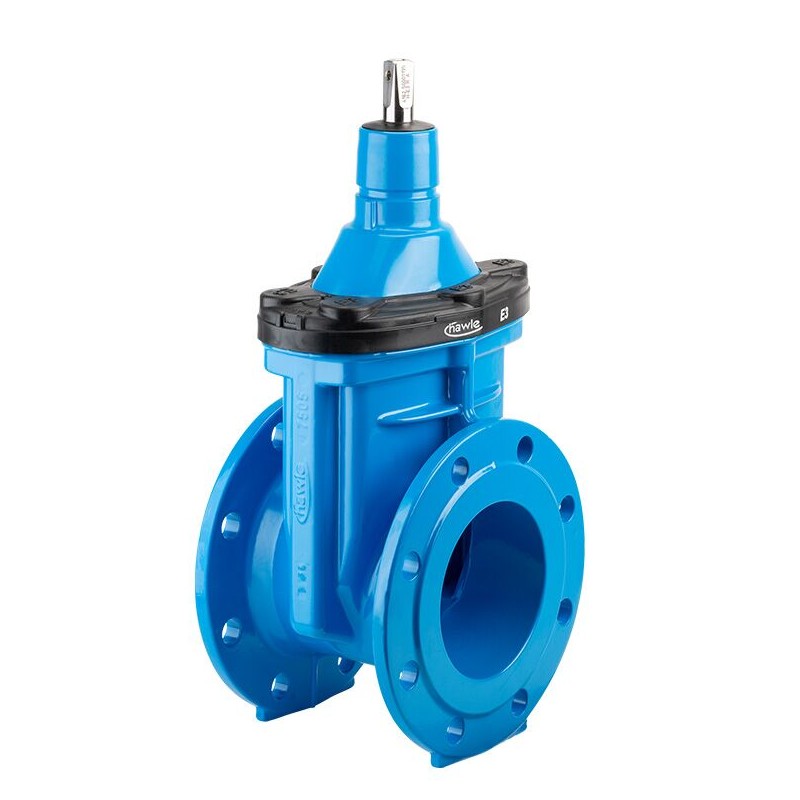

- Double bayonet O-ring carrier is connecting the spindle to the bonnet, allowing a fully encased, uniform epoxy powder coated bonnet for further improved corrosion protection
- Spindel made of Duplex stainless steel
- Wedge guide made of wear resistant POM material in load optimized design minimizes attrition and ensures lowest torque actuation
- Wedge is flexible and fully linked in vulcanized elastomer to the wedge nut. This snug fit dampens vibration during opening and closing of the wedge
- Wedge nut has a long thread length allowing significantly higher torques than the standard before breaking
- O-rings, lip-seals mounted in the bonnet are replaceable under operating pressure
- Extended edge protection to avoid damages during transport, storage and assembly
- Sliding disks and ball bearing assure low friction performance of the spindle
- 100% suitable for buried installations
- Suitable for cleaning with a cleaning pig
- One extension spindle for several dimensions
- Suitable for operation by automatic actuators
- Easy refitting for position indicator and automatic actuators on the standard bonnet (DN 50 to DN 200)
- To set-up an actuator or a position indicator, remove the centering flange and insert position indicator or actuator with adapter (DN 250 bis DN 400)
Specification
Overview
| Diameter |
100 mm ,125 mm ,150 mm ,200 mm ,250 mm ,300 mm ,350 mm ,400 mm ,50 mm ,500 mm ,600 mm ,65 mm ,80 mm |
|---|---|
| Pressure |
16 bar |
| Operating temperature |
0…+70 °C |
| Connections |
Flanged |
| Brand |
Hawle |
| Series |
4000E3 |
