Description

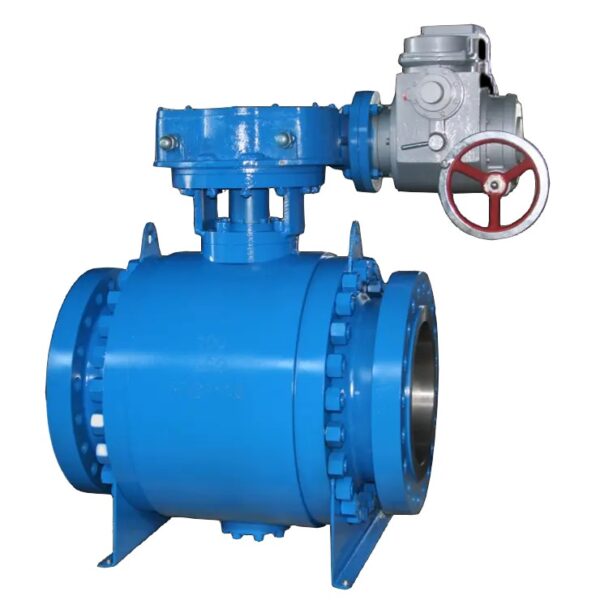

– Two-pieces cast steel body for size 12” and smaller, three-pieces cast steel body for sizes larger than 12”
– Trunnion mounted ball, spring loaded seat, anti-static spring, anti-blow out stem
– Full bore and reduced bore available, Flanged ends and BW ends available, Soft seal and metal seal available
– V-PTFE live loading as standard packing and graphite packing for high working temperature
– Double block and bleed, the medium entrapped can be discharge through vent valve and bleed valve to avoid overpressure in the valve cavity
– Fire safe according to API 607, BS 6755, Secondary metal to metal seal acts as backup when the primary soft seal is destroyed by fire
Specification
Overview
| Diameter |
1200 mm |
|---|---|
| Pressure |
25 bar |
| Connections |
Flanged |
| Operating temperature |
-20ā¦+180 Ā°Š” |
| Brand |
Grandeval |
| Series |
TP |
